The restrictor system

A restrictor meters the flow from the bottle to the applicator. The catalog offers plastic restrictors with a fixed orifice and felt restrictors by weight and thickness, and each applicator type names the restrictor it takes.

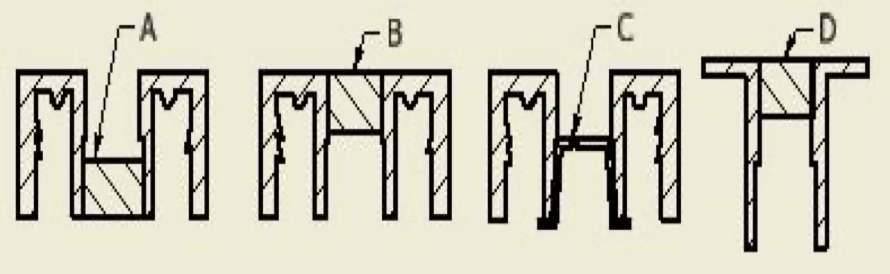

The catalog legend of restrictor positions A to D inside a cap — Positions A to D, as the catalog draws them. The meaning of each position in words comes from the client.

Plastic restrictors

ID	Colour	Hole size	Position	Fitted in
F5021	Orange	0.0150 in / 0.3810 mm	C	see the Type pages
F5020	Green	0.0200 in / 0.5080 mm		see the Type pages
F5002	Red	0.0310 in / 0.7874 mm	C	A60, A46, A37-1, A25-2, A25, A24, A56-4, A33-1, A33
F5012	Orange	0.0800 in / 2.0320 mm	C	A92, B18

Felt restrictors

ID	Felt	Position	A la carte ID	Pack	Fitted in
F5011	64oz x 1/4"	A	F5011-100	100 pcs per bag/order by bag	A3-1, A96, A35, B16, A67-1, A67, A47, A37, B18-1, A49
F5004	64oz x 1/4"	B/D	F5004-100	100 pcs per bag/order by bag	A76-1, A80, A60, A46, A67, A47, A25, A49
F97	32oz x 1/4"	D	F97-100	100 pcs per bag/order by bag	A39
F10	42oz x 3/8"	B	F10-100	100 pcs per bag/order by bag	B8, A32
